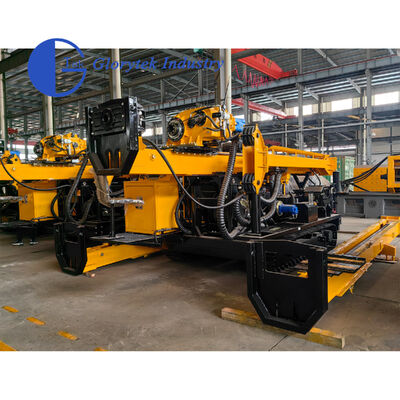

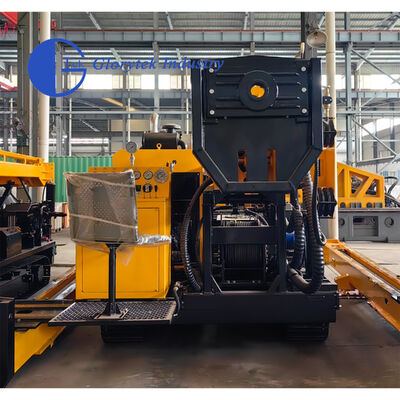

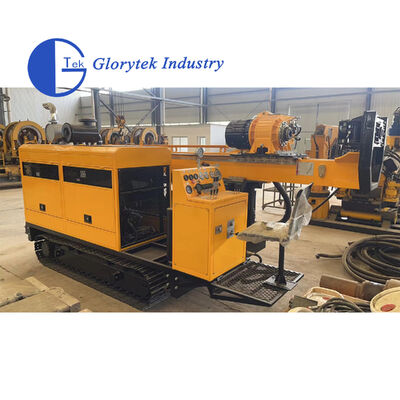

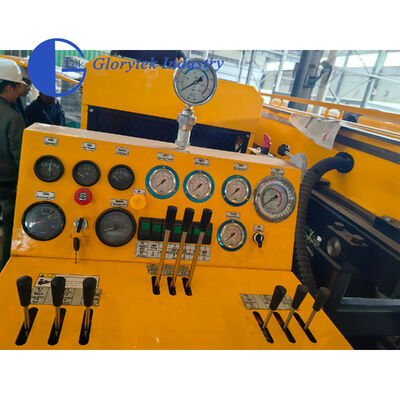

GLDX-4 Crawler Chassis Full Hydraulic Core Drill/Drilling Rig for Metallurgy

Description

General Overview

The leading core drill rigs in the developed countries are full hydraulic operated type, which adopt the technology of wire-drawing core with diamond tip. This type of drill rig is also the main developing trend in the field of drill rig technology and related equipment. Under the international and domestic trend, our factory has developed the GLDX-4 Full Hydraulic Operated Core Drill Rig. This type of drill rig can take the place of imported products and be applied in the felds of geology, metallurgy, coal mines, petroleum, natural gas and underground water exploration.

Main Technical Features

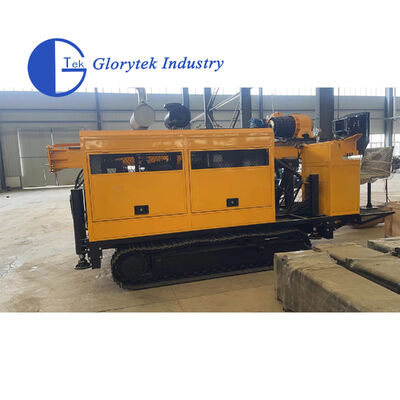

1.The rig adopts a tracked chassis.
2.The drill head adopts a chuck type structure. The rotation of the drill head has four mechanical shafts, and it speed could be adjusted by hydraulic pressure with stepless speed change, which can achieve high-precision rotation of the spindle. Drill head is driven by cylinder directly and set with lateral translation mechanism.
3.The mast is foldable, convenient for transportation and storage, with sliding touch function.
4.The hydraulic system adopts load sensitive control, and the rotation of the spindle is driven by a single motor with closed loop circuit, with high operation efficiency.
5.The mast is equipped with centering guide in its upper and lower part. A hydraulic clamp is adopted at the position above the drilling hole.
6.Equipped with an orifice working platform and two layer working platform



Specifications:

The figures in these tables have been calculated, based on field experiences, and may be reasonably expected.
Actual drilling capacity will depend on in-hold tools and conditions, drilling techniques and equipment used

	Model	DX-4 full hydraulic
Diesel Engine	Model	cummins 6BTA5.9-C180
	Power	132kW
	Speed	2200rpm
Drilling Capacity	BQ	1000m
	NQ	700m
	HQ	500m
Rotator Capacity	RPM	Four Shifts/Changeable Stepless0-1100rpm
	Max.Torque	4200N·m
	Hold Diameter	Φ98mm
	Max.Lifting Capacity of Spindle	150kN
	Max.Feeding Power	60kN
Capacity of Main Hoist	Hoisting Force(singlee wire)	57kN
	Steel Wire Diameter	12mm
	Steel Wire Length	50m
Capacity of Steel Wire Hoist	Hoisting Force(singlee wire)	12kN (Bare drum)
	Steel Wire Diameter	6mm
	Steel Wire Length	1000m
Mast	Mast Height	11m
	Mast Adjusting Angle	0°-90°
	Drilling Angle	45°-90°
	Feeding Stroke	3500mm
	Slippage Stroke	600mm
Other	Weight	9300kg
	Dimensions(L*W*H)	Main equipment 5100*2200*2890mm
	Transport Way	Crawler
Mud Pump	Model	BW-150
Foot damp	Clamping Scope	55.5-110mm(standard hole size Φ154mm)
